Product Summary

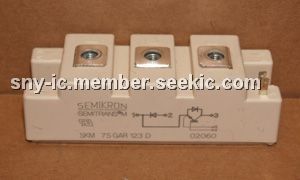

The SKM75GAR123D is an IGBT module. It is suitable for AC inverter drives and UPS.
Parametrics
SKM75GAR123D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 75A; (3)ICRM: 150A; (4)VGES: ±20V; (5)tpsc: 10μs.
Features
SKM75GAR123D features: (1)MOS intput (votlage controlled); (2)low inductance case; (3)very low tail current with low temperature dependence; (4)high short circuit capability, self limiting to 6Icnom; (5)latch-up free; (6)fast & soft inverse CAL diodes; (7)isolated copper baseplate using DCB direct copper bonding technology; (8)large clearance and creepage distance.
Diagrams
 |
