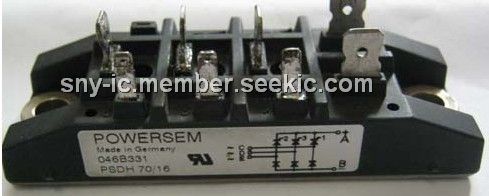

Product Summary
The PSDH70-16 is a Three Phase Half Controlled Bridge. The applications are (1)Heat and temperature control for industrial furnaces and chemical processes; (2)Lighting control; (3)Motor control; (4)Power converter.
Parametrics
PSDH70-16 absolute maximum ratings: (1)IdAV TC = 85 ℃ per module: 70 A; (2)PGM TVJ = TVJM tP = 30μs: ≤10 W; (3)IT = ITAVM tP = 500μs: ≤5 W; (4)PGAVM: 0.5 W; (5)VRGM: 10 V; (6)TVJ: -40 to + 125℃; (7)TVJM: 125℃; (8)Tstg: -40 to + 125℃; (9)VISOL 50/60 HZ, RMS t = 1 min: 2500 V ～; (10) IISOL ≤ 1 mA t = 1 s: 3000 V ～; (11)Md Mounting torque (M5): 2 - 2.5 Nm; (12)Weight typ.: 100 g.
Features
PSDH70-16 features: (1)Package with fast-on terminals; (2)Isolation voltage 3000 V～; (3)Planar glasspassivated chips; (4)Low forward voltage drop; (5)UL registered E 148688.

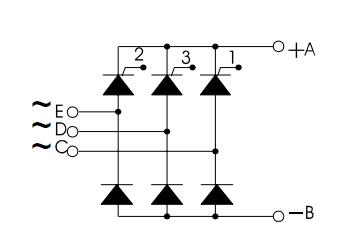

Diagrams
