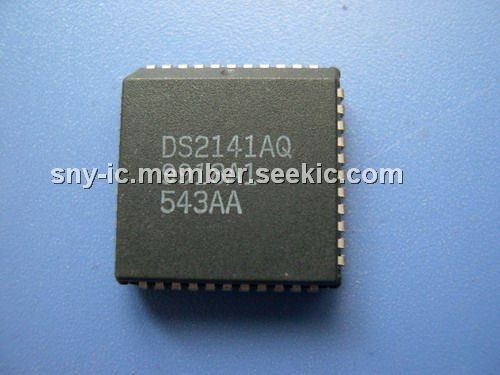

Product Summary

The DS2141AQ is a comprehensive, software-driven T1 framer. It is meant to act as a slave or coprocessor to a microcontroller or microprocessor. Quick access via the parallel control port allows a single micro to handle many T1 lines. The DS2141AQ is very flexible and can be configured into numerous orientations via software. The software orientation of the device allows the user to modify their design to conform to future T1 specification changes. The controller contains a set of 62 8-bit internal registers which the user can access. These internal registers are used to configure the DS2141AQ and obtain information from the T1 link. The DS2141AQ fully meets all of the latest T1 specifications including ANSI T1.403-1989, AT&T TR 62411 (12-90), and CCITT G.704 and G.706.

Parametrics

DS2141AQ absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -1.0V to +7.0V; (2)Operating Temperature: 0 to 70℃; (3)Storage Temperature: -55 to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS2141AQ features: (1)DS1/ISDN-PRI framing transceiver; (2)Frames to D4, ESF, and SLC-96 formats; (3)Parallel control port; (4)Onboard, dual two-frame elastic store slip buffers; (5)Extracts and inserts robbed-bit signaling; (6)Programmable output clocks; (7)Onboard FDL support circuitry; (8)5V supply; low-power CMOS; (9)Available in 40-pin DIP and 44-pin PLCC; (10)Compatible with DS2186 Transmit Line Interface, DS2187 Receive Line Interface, DS2188 Jitter Attenuator, DS2290 T1 Isolation Stik, and DS2291 T1 Long Loop Stik.

Diagrams

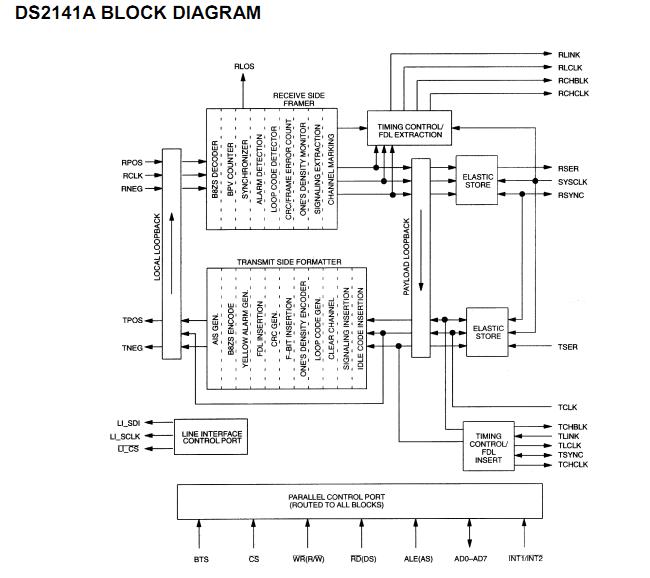

DS2141AQ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DS2141AQ
DS2141AQ
Maxim Integrated Products
Network Controller & Processor ICs
Data Sheet
Negotiable
DS2141AQ/T&R
DS2141AQ/T&R
Maxim Integrated Products
Network Controller & Processor ICs T1 Controller w/Elastic Store
Data Sheet
0-500: $12.47
500-4166: $12.47
DS2141AQ+
DS2141AQ+
Maxim Integrated Products
Network Controller & Processor ICs T1 Controller w/Elastic Store
Data Sheet
0-1: $12.52
1-25: $11.12
25-100: $10.03
100-500: $9.91
DS2141AQN+
DS2141AQN+
Maxim Integrated Products
Network Controller & Processor ICs T1 Controller w/Elastic Store
Data Sheet
0-1: $14.07
1-25: $12.51
25-50: $11.40
50-100: $11.26
DS2141AQ+T&R
DS2141AQ+T&R
Maxim Integrated Products
Network Controller & Processor ICs T1 Controller w/Elastic Store
Data Sheet
0-391: $10.01
391-500: $10.01
DS2141AQN
DS2141AQN
Maxim Integrated Products
Network Controller & Processor ICs T1 Controller w/Elastic Store
Data Sheet
0-4144: $14.39
