Product Summary

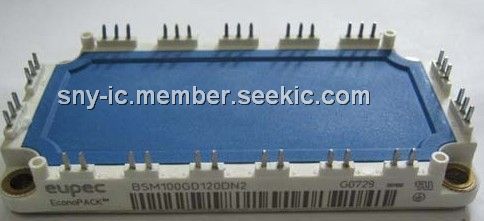

The BSM100GD120DN2 is an IGBT module.

Parametrics

BSM100GD120DN2 maximum ratings: (1)Chip temperature Tj: + 150 ℃; (2)Storage temperature Tstg: -55 to + 150 ℃; (3)Thermal resistance, chip case RthJC ≤ 0.182 K/W; (4)Diode thermal resistance, chip case RthJCD ≤ 0.36; (5)Insulation test voltage, t = 1min. Vis: 2500 Vac; (6)Creepage distance: - 16 mm; (7)Clearance: - 11; (8)DIN humidity category, DIN 40 040: F; (9)IEC climatic category, DIN IEC 68-1: 55 / 150 / 56.

Features

BSM100GD120DN2 features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

Diagrams

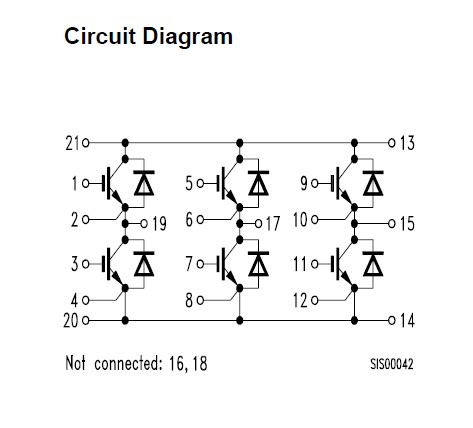

BSM100GD120DN2 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM100GD120DN2
BSM100GD120DN2
Infineon Technologies
IGBT Modules 1200V 100A FL BRIDGE
Data Sheet
0-1: $137.54
1-5: $130.67
5-10: $123.79
10-50: $120.06
