Product Summary

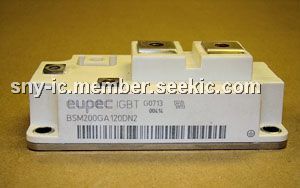

The BSM200GA120DN2 is an IGBT power module.

Parametrics

BSM200GA120DN2 maximum ratings: (1)Collector-emitter voltage VCE: 1200 V; (2)Collector-gate voltage RGE = 20 kW VCGR: 1200 V; (3)Gate-emitter voltage VGE ± 20 V; (4)DC collector current TC = 25 ℃: 300A; (5)TC = 80 ℃: 200A; (6)Pulsed collector current, tp = 1 ms ICpuls TC = 25 ℃: 600A; TC = 80 ℃: 400A; (7)Diode thermal resistance, chip case RthJCD ≤ 0.15; (8)Insulation test voltage, t = 1min. Vis 2500 Vac; (9)Creepage distance - 20 mm; (10)Clearance - 11; (11)DIN humidity category, DIN 40 040 - F sec; (12)IEC climatic category, DIN IEC 68-1 - 40 / 125 / 56.

Features

BSM200GA120DN2 features: (1)Single switch; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

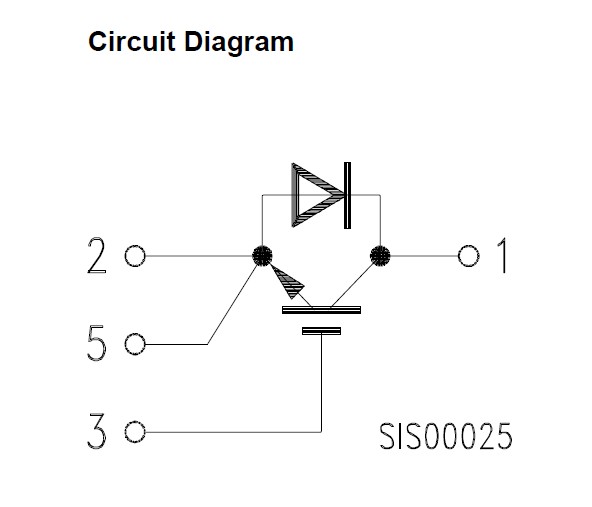

BSM200GA120DN2 diagram
