Product Summary

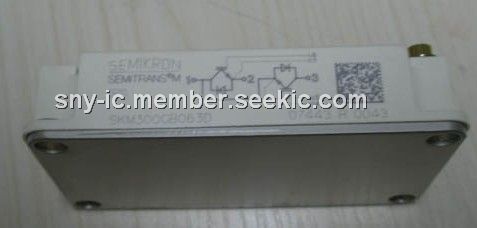

The SKM300GB063D is a superfast IGBT module. The typical applications of the SKM300GB063D are: Switching (not for linear use); Switched mode power supplies; AC inverter servo drives; UPS uninterruptable power supplies; Welding inverters.

Parametrics

SKM300GB063D absolute maximum ratings: (1)VCES: 600V; (2)VCGR, RGE = 20 kW: 600V; (3)IC, Tcase = 25/70 ℃: 400 / 300A; (4)ICM, Tcase = 25/70 ℃; tp = 1 ms: 450 / 450A; (5)VGES: ± 20V; (6)Ptot, per IGBT, Tcase = 25 ℃: 1350W; (7)Tj, (Tstg): –40 to +150 (125); (8)Visol, AC, 1 min.: 2500V; (9)humidity, DIN 40040: Class F; (10)climate, DIN IEC 68 T.1: 40/125/56.

Features

SKM300GB063D features: (1)Low tail current with low temperature dependence; (2)High short circuit capability, self limiting if term. G is clamped to E; (3)Pos. temp.-coeff. of VCEsat; (4)50 % less turn off losses; (5)30 % less short circuit current; (6)Very low Cies, Coes, Cres; (7)Latch-up free; (8)Fast & soft inverse CAL diodes; (9)Isolated copper baseplate using DCB Direct Copper Bonding Technology without hard mould; (10)Large clearance (13 mm) and creepage distances (20 mm).

Diagrams

SKM300GB063D block diagram
