Product Summary
The HCT00 is a four independent 2-input NAND gate.
Parametrics
HCT00 absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA ; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC) ±25 mA; (5)Continuous current through VCC or GND ±50 mA; (6)Package thermal impedance, θJA: 86℃/W.
Features
HCT00 features: (1)Operating Voltage Range of 4.5 V to 5.5 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 10 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Inputs Are TTL-Voltage Compatible.

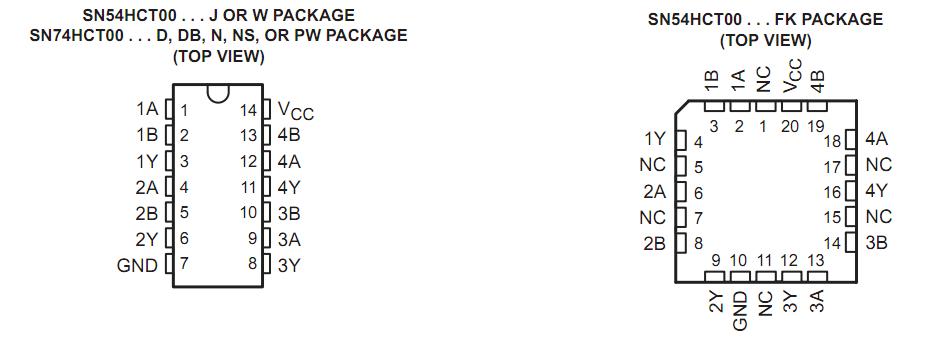

Diagrams
 |
