Product Summary
The MHW1345 is the 24 Vdc supply, 10 to 200 MHz, general purpose linear amplifier module.
Parametrics
MHW1345 absolute maximum ratings: (1)DC Supply Voltage VCC: 28 Vdc; (2)RF Power Input Pin: +5 dBm; (3)Operating Case Temperature Range TC: –20 to +100℃; (4)Storage Temperature Range Tstg: –40 to +100℃.
Features
MHW1345 features: (1)34.5 dB Typical Gain @ 100 MHz; (2)Silicon Bipolar Technology; (3)Class A Operation; (4)Typical ITO = +44 dBm @ 200 MHz; (5)Unconditionally Stable Under All Load Conditions.

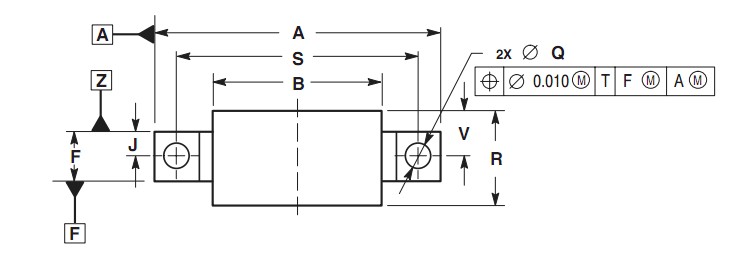

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW1345 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MHW1345N |
|
AMPLIFIER LINEAR MODULE 12V |
Data Sheet |
Negotiable |
|
||||
