Product Summary

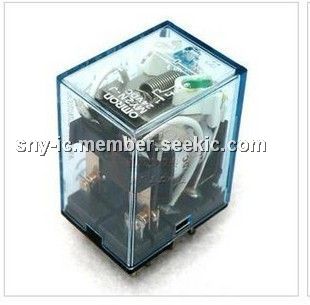

The MY2NJ-DC24V is a Versatile, Multi-featured, Miniature Power Relay for Sequence Control and Power Switching Applications.

Parametrics

MY2NJ-DC24V general specifications: (1)Contact resistance: 100 mΩ max.; (2)Operate time: 20 ms max.; (3)Release time: 20 ms max.; (4)Max. operating frequency: Mechanical: 18,000 operations/hr; Electrical: 1,800 operations/hr (under rated load); (5)Insulation resistance 1,000 MΩ min. (at 500 VDC); (6)Dielectric strength 2,000 VAC, 50/60 Hz for 1.0 min (1,000 VAC between contacts of same polarity); (7)Ambient temperature Operating: –55℃ to 70℃ (with no icing); (8)Ambient humidity Operating: 5% to 85%; (9)Weight: Approx. 35 g.

Features

MY2NJ-DC24V features: (1)Models with lockable test buttons now available; (2)Arc barrier standard on 4-pole Relays; (3)Dielectric strength: 2,000 VAC (coil to contact); (4)Environment-friendly cadmium-free contacts; (5)Safety standard approvals obtained; (6)Wide range of Sockets (PY, PYF Series) and optional parts are available.; (7)Max. Switching Current: 2-pole: 10 A, 4-pole: 5 A; (8)Provided with nameplate.

Diagrams

MY2NJ-DC24V package dimensions
