Product Summary
The SKBPC3516 is a Bridge Rectifier. It is suitable for General purpose 3 phase Bridge rectifier applications.
Parametrics
SKBPC3516 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage , VRR: 400V; (2)Average Rectified Output Current, IO: 35 A; (3)Current Squared Time, I2t: 660 A2S; (4)Storage Temperature, Tstg: -40 ~+150℃; (5)Junction Temperature, Tj: -40~+150℃; (6)Dielectric Strength, Vdis: 2.5KV.
Features
SKBPC3516 features: (1)Io 35A; (2)VRRM 400V~1600V; (3)Glass passivated chip; (4)High surge forward current capability.

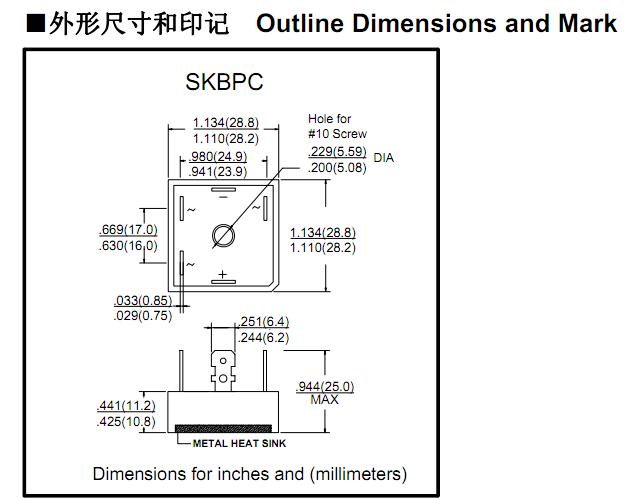

Diagrams
 |
