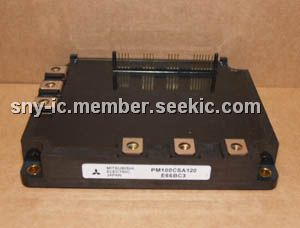

PM100CSA120

Mitsubishi Intelligent Power Module, Gate Drive Circuit, 1.47 ~ 1.96 N · m, 800 Volts, Under Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $120.00~180.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $120.00~180.00

PartNumber:: PM100CSA120

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chris's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-01

From Other Seller

Part Number:PM100CSA120
US $120.00 - 180.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

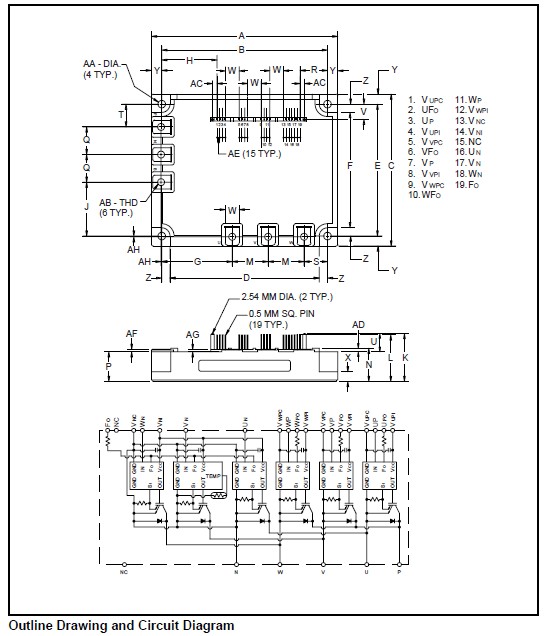

Product Summary

The PM100CSA120 Mitsubishi Intelligent Power Module is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM100CSA120 include Inverters, UPS, Motion/Servo Control, Power Supplies and so on.

Parametrics

PM100CSA120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Case Operating Temperature, TC: -20 to 100 ℃; (4)Mounting Torque, M5 Mounting Screws: 1.47 ~ 1.96 N · m; (5)Mounting Torque, M5 Main Terminal Screws: 1.47 ~ 1.96 N · m; (6)Module Weight (Typical): 920 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part, Tj = 125℃), VCC(prot.): 800 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

PM100CSA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Current; Over Temperature; Under Voltage.
