Product Summary

The LM733H is a two-stage, differential input, differential output, wide-band video amplifier. The use of internal series-shunt feedback gives wide bandwidth with low phase distortion and high gain stability. Emitter-follower outputs provide a high current drive, low impedance capability. Its 120 MHz bandwidth and selectable gains of 10, 100 and 400, without need for frequency compensation, make the LM733H a very useful circuit for memory element drivers, pulse amplifiers, and wide band linear gain stages. The applications of the LM733H are (1)Magnetic tape systems; (2)Disk file memories; (3)Thin and thick film memories; (4)Woven and plated wire memories; (5)Wide band video amplifiers.

Parametrics

LM733H absolute maximum ratings: (1)Diffential Input Voltage: ±5V; (2)Common Mode Input Voltage: ±6V; (3)VCC: ±8V; (4)Output Current: 10 mA; (5)Power Dissipation: 500 mW; (6)Junction Temperature: 150℃; (7)Storage Temperature Range: -65 to 150℃; (8)Operating Temperature Range: -55 to 125℃; (9)Lead Temperature (Soldering, 10 sec.): 260℃.

Features

LM733H features: (1)120 MHz bandwidth; (2)250 kX input resistance; (3)Selectable gains of 10, 100, 400; (4)No frequency compensation; (5)High common mode rejection ratio at high frequencies.

Diagrams

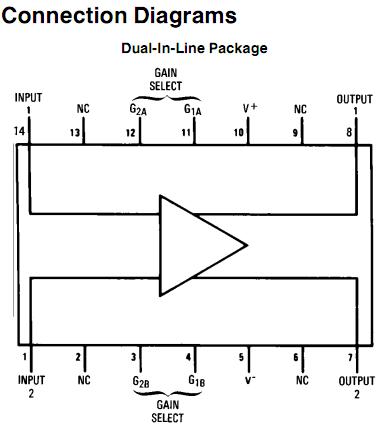

LM733H block diagram
