HFA210NJ60C

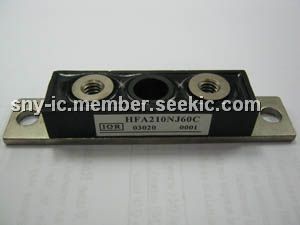

Soft Recovery Diode, 600 V, 171A, 463W, HFA210NJ60C, International Rectifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $80.00~120.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $80.00~120.00

PartNumber:: HFA210NJ60C

Brand:: International Rectifier - IR | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chris's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-01

From Other Seller

Part Number:HFA210NJ60C
US $80.00 - 120.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HFA210NJ60C is an Ultrafast, Soft Recovery Diode. It is optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the recovery eliminates the need for a snubber in most applications. The HFA210NJ60C is ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.

Parametrics

HFA210NJ60C absolute maximum ratings: (1)VR, Cathode-to-Anode Voltage: 600 V; (2)IF @ TC = 25℃, Continuous Forward Current: 171A; (3)IF @ TC = 100℃, Continuous Forward Current: 85A; (4)IFSM, Single Pulse Forward Current: 600A; (5)EAS, Non-Repetitive Avalanche Energy: 220 μJ; (6)PD @ TC = 25℃, Maximum Power Dissipation: 463W; (7)PD @ TC = 100℃, Maximum Power Dissipation: 185W; (8)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to +150℃.
