Product Summary

The C5682 is an Ultrahigh-Definition CRT Display suitable for Horizontal Deflection Output Applications.

Parametrics

C5682 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: 1500 V; (2)Collector-to-Emitter Voltage VCEO: 800 V; (3)Emitter-to-Base Voltage VEBO: 5V; (4)Collector Current IC: 20 A; (5)Collector Current (Pulse) ICP: 40 A; (6)Collector Dissipation PC: 3.0 W; (7)Junction Temperature Tj: 150℃; (8)Storage Temperature Tstg: -55 to +150℃.

Features

C5682 features: (1)High speed; (2)High breakdown voltage(VCBO=1500V); (3)High reliability(Adoption of HVP process); (4)Adoption of MBIT process.

Diagrams

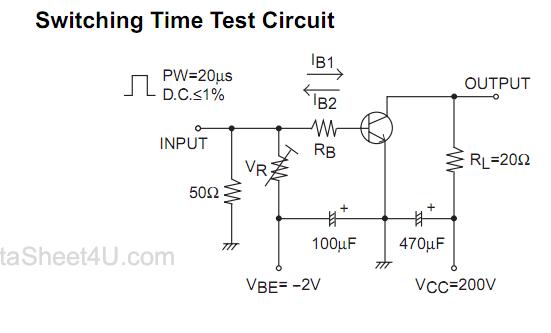

C5682 test circuit
