CDP65C51E2

communications interface adapter, DIP-28, -0.5 to 7V, 500mW, ±10mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.00~5.50

PartNumber:: CDP65C51E2

Brand:: Intersil Corporation - Intersil | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chris's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-06

From Other Seller

Part Number:CDP65C51E2
US $3.00 - 5.50
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

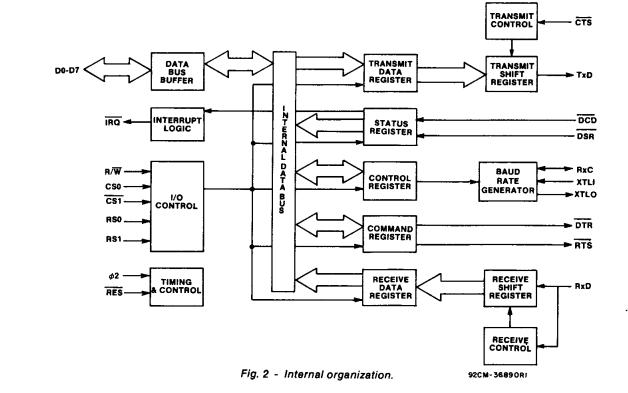

The CDP65C51E2 is an asynchronous communications interface adapter. It provides an easily implemented, program controlled interface between 8-bit microprocessor based systems and serial communication data sets and modems. The CDP65C51E2 has an internal baud rate generator. This feature eliminates the need for multiple component support circuits, a crystal being the only other part required.

Parametrics

CDP65C51E2 absolute maximum ratings: (1)DC supply votlage range, VDD: -0.5 to 7V; (2)input voltage range, all inputs: -0.5 to VDD+0.5V; (3)DC input current, any one input: ±10mA; (4)power dissipation per package, PD: 500mW; (5)device dissipation per output transistor: 100mW; (6)operating temperature range, TA: -55 to 125℃; (7)storage temeprature range, Tstg: -65 to 150℃; (8)lead temperature: 265℃.

Features

CDP65C51E2 features: (1)compatible with 8 bit microprocessors; (2)full duplex operation with buffered receiver and transister; (3)data set/modem control functions; (4)internal baud rate generator with 15 programmable baud rates; (5)program selectable internally or externally controlled receiver rate; (6)operates at baud rates up to 250000 via proper crystal or clock selection; (7)programmable word lengths, number of stop bits and parity bit generation and detection; (8)programmable interrupt control; (9)program reset; (10)program selectable serial echo mode; (11)two chip selects; (12)signle 3V to 6 power supply; (13)full TTL compatibility; (14)synchronous CTS operation.
