Product Summary
The AD9736BBCZ is a high performance, high frequency DAC that provides sample rates of up to 1200 MSPS, permitting multi-carrier generation up to their Nyquist frequency. The AD9736BBCZ includes a serial peripheral interface (SPI) port that provides for programming many internal parameters and also enables read-back of status registers. The AD9736BBCZ uses a reduced specification LVDS interface to minimize data interface noise that may degrade performance. It is supplied in a 160 pin BGA package for reduced package parasitics. The applications of the AD9736BBCZ are Instrumentation, Automatic Test Equipment, RADAR, Avionics and Wideband Communications Systems: Point-to-Point Wireless, LMDS, PA Linearization.
Parametrics
AD9736BBCZ absolute maximum ratings: (1)AVDD33 AVSS: -0.3 V to +3.6 V; (2)DVDD33 DVSS: -0.3 V to +3.6 V; (3)DVDD18 DVSS: -0.3 V to +1.98 V; (4)CVDD18 CVSS: -0.3 V to +1.98 V; (5)AVSS DVSS: -0.3 V to +0.3 V; (6)AVSS CVSS: -0.3 V to +0.3 V; (7)DVSS CVSS: -0.3 V to +0.3 V; (8)CLK+, CLK- CVSS: -0.3 V to CVDD18 + 0.18 V; (9)PIN_MODE DVSS: -0.3 V to DVDD33 + 0.3 V; (10)DATACLK_IN, DATACLK_OUT DVSS: -0.3 V to DVDD33 + 0.3 V; (11)LVDS Data Inputs DVSS: -0.3 V to DVDD33 + 0.3 V; (12)IOUTA, IOUTB AVSS: -1.0 V to AVDD33 + 0.3 V; (13)I120, VREF, IPTAT AVSS: -0.3 V to AVDD33 + 0.3 V; (14)IRQ, CSB, SCLK, SDO, SDIO, RESET DVSS: -0.3 V to DVDD33 + 0.3 V; (15)Junction Temperature: 150℃; (16)Storage Temperature: -65 to +150℃.
Features
AD9736BBCZ features: (1)1.8/3.3 V Dual Supply Operation; (2)AD9736 SFDR > 53 dBc to fOUT = 600 MHz; (3)AD9736 IMD > 65 dBc to fOUT = 600 MHz; (4)AD9736 DNL = ± 1.0 LSB; (5)AD9736 INL = ± 2.0 LSB ; (6)Low power: 380 mW (IOUTFS = 20 mA; fOUT = 330 MHz); (7)LVDS data interface with on-chip 100 terminations; (8)Analog Output: Adjustable 10-30mA (RL=25 to 50Ω); (9)On-Chip 1.2 V Reference; (10)160 pin BGA Package.

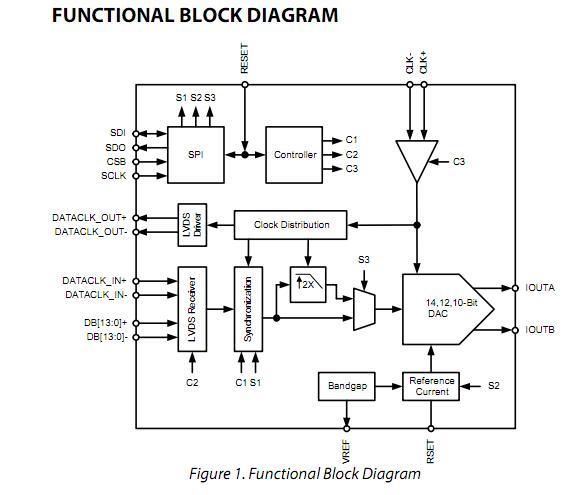

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9736BBCZ |
|
IC DAC 14BIT 1.2GSPS 160CSPBGA |
Data Sheet |
|
|
||||||||||||||
|
AD9736BBCZRL |
|
IC DAC 14BIT 1.2GSPS 160CSPBGA |
Data Sheet |
|
|
||||||||||||||
