Product Summary

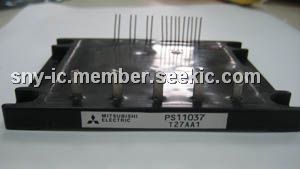

The PS11037 is an Intelligent Power Module. It is suitable for Acoustic noise-less 3.7kW/200V AC Class 3 phase inverters, motor control applications, and motors with built-in small size inverter package.
Parametrics
PS11037 absolute maximum ratings: (1)Supply voltage, VCC: 450V; (2)Supply voltage (surge), VCC(surge): 500V; (3)Each IGBT collector-emitter static voltage, VP or VN: 600V; (4)Each IGBT collector-emitter switching voltage, VP(s) or VN(s): 600V; (5)Each IGBT collector current, ±IC(±ICP): ±50(±100)A.
Features
PS11037 features: (1)3 phase IGBT inverter bridge configured by the latest 3rd generation IGBT and diode technology; (2)Inverter output current capability IO.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS11037 |
|
MOD IPM 3PHASE IGBT 600V 50A |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
