Product Summary

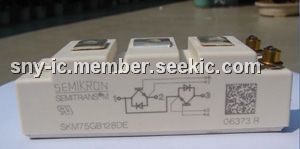

The SKM75GB128DE is a SPT IGBT module. The applications of the SKM75GB128DE are: AC inverter drives; UPS; Electronic welders at fsw up to 20kHz.

Parametrics

SKM75GB128DE absolute maximum ratings: (1)VCES: 1200V; (2)IC, Tc=25(80)℃: 100(70)A; (3)ICRM, tp=1ms: 100A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPRATION≤Tstg: -40 to +150℃; (6)Visol, AC, 1min: 4000V.

Features

SKM75GB128DE features: (1)Homogenous Si; (2)SPT=Soft punch through technology; (3)VCE(sat) with positive temperature coefficient; (4)High short circuit capability, self limiting to 6xIC.

Diagrams

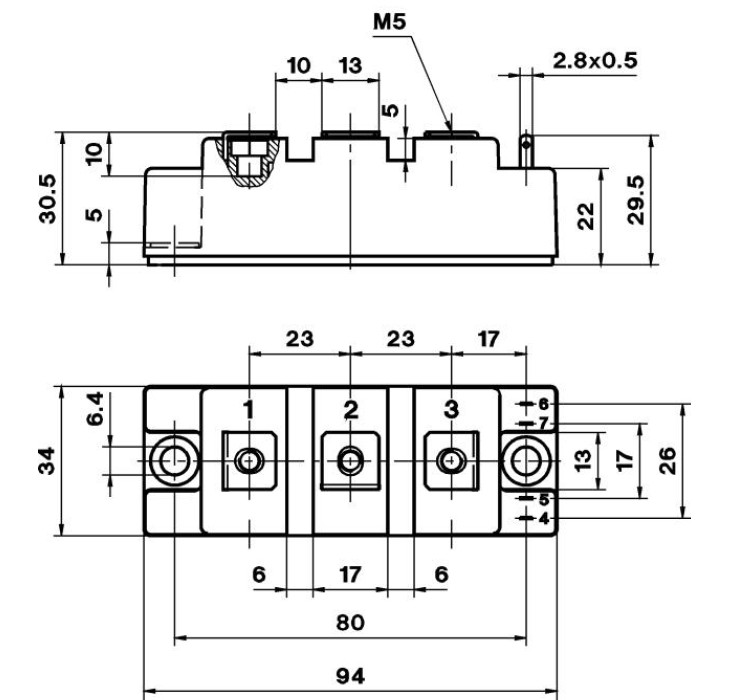

SKM75GB128DE dimension
