Product Summary

The PM100CSA060 is an Intelligent Power Module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM100CSA060 are Inverters, UPS, Motion/Servo Control and Power Supplies.

Parametrics

PM100CSA060 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Case Operating Temperature TC: -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 1.47 ~ 1.96 Nm; (5)Mounting Torque, M5 Main Terminal Screws: 1.47 ~ 1.96 Nm; (6)Module Weight (Typical): 550 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part) VCC(prot.): 400 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.

Features

PM100CSA060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltage.

Diagrams

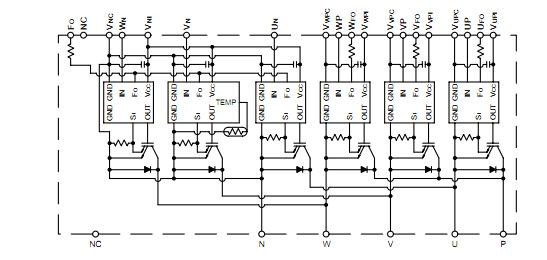

PM100CSA060 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PM100CSA060
PM100CSA060

MOD IPM 6PAC 600V 100A
Data Sheet
Negotiable
