Product Summary
The MCC132-16IO1 is a Thyristor Module. The applications of the MCC132-16IO1 include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Contactless switches.
Parametrics
MCC132-16IO1 absolute maximum ratings: (1)ITRMS, IFRMS: 300 A at TVJ = TVJM; (2)ITAVM, IFAVM: 130 A at TC = 85℃; 180° sine; (3)ITSM, IFSM: 4750 A at TVJ = 45℃; t = 10 ms (50 Hz), sine, 4530 A at VR = 0, t = 8.3 ms (60 Hz), sine; (4)(di/dt)cr: 150 A/μs at TVJ = TVJM, f =50 Hz, tP =200μs, VD = 2/3 VDRM, IG = 0.5 A, diG/dt = 0.5 A/μs; (5)PGM: 120 W at TVJ = TVJM, tP = 30 μs, 60 W at IT = ITAVM, tP = 500 μs; (6)PGAV: 8 W; (7)TVJ: -40 to +125 ℃; (8)TVJM: 125 ℃; (9)Tstg: -40 to +125 ℃.
Features
MCC132-16IO1 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.

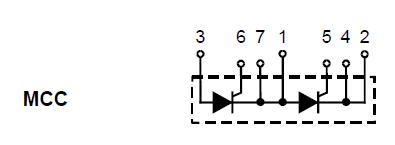

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCC132-16io1 |
Ixys |
Discrete Semiconductor Modules 132 Amps 1600V |
Data Sheet |
Negotiable |
|
||||||
