Product Summary

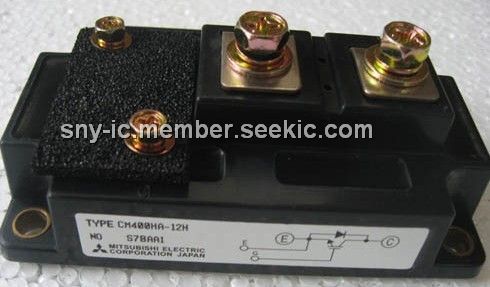

The CM400HA-12H is an IGBT Module. It is designed for use in switching applications. Each module consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of CM400HA-12H are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HA-12H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM400HA-12H absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 600 Volts; (4)Gate-Emitter Voltage VGES: ±20 Volts; (5)Collector Current IC: 400 Amperes; (6)Peak Collector Current ICM: 800 Amperes; (7)Diode Forward Current IF: 400 Amperes; (8)Diode Forward Surge Current IFM: 800 Amperes; (9)Power Dissipation Pd: 1500 Watts; (10)Max. Mounting Torque M6 Terminal Screws: 26 in-lb; (11)Max. Mounting Torque M6 Mounting Screws: 26 in-lb.
Features
CM400HA-12H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
Diagrams
