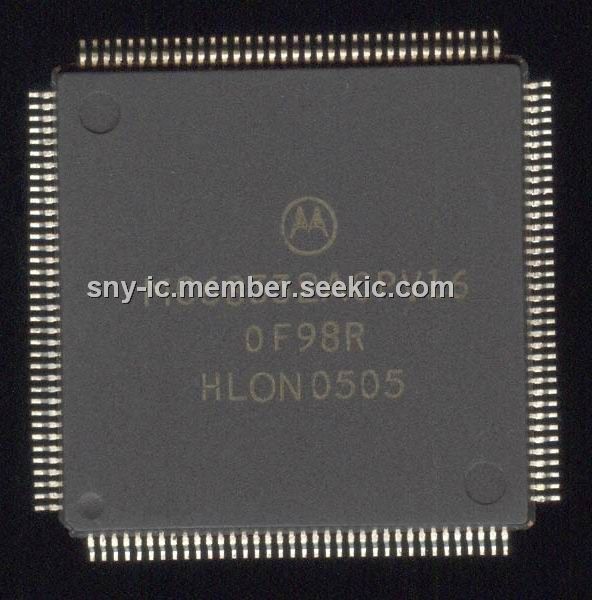

MC68332ACPV16

highly-integrated 32-bit microcontroller, 16MHZ, 5V, 132-Pin PQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~30.00

PartNumber:: MC68332ACPV16

Brand:: Motorola, Inc - Motorola | Pack: QFP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chris's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-07

From Other Seller

Part Number:MC68332ACPV16
US $8.00 - 30.00
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC68332ACPV16 is a highly-integrated 32-bit microcontroller. It combines high-performance data manipulation capabilities with powerful peripheral subsystems. The MC68332ACPV16 is built up from standard modules that interface through a common intermodule bus (IMB). The MC68332ACPV16 incorporates a 32-bit CPU (CPU32), a system integration module (SIM), a time processor unit(TPU), a queued serial module (QSM), and a 2-Kbyte static RAM module with TPU emulation capability (TPURAM).

Parametrics

MC68332ACPV16 absolute maximum ratings: (1)RAM Size: 2K × 8; (2)Number of I /O: 15; (3)Package / Case: 132-BQFP Bumpered; (4)Speed: 16MHz; (5)Oscillator Type: Internal; (6)Packaging: Tray; (7)Program Memory Type: ROMless; (8)Core Processor: CPU32; (9)Core Size: 32-Bit; (10)Operating Temperature: -40℃ ~ 85℃; (11)Connectivity: EBI/EMI, SCI, SPI, UART/USART; (12)Peripherals: POR, PWM, WDT; (13)Voltage - Supply (Vcc/Vdd): 4.5 V ~ 5.5 V; (14)Lead Free Status: Contains Lead; (15)RoHS Status: RoHS Non-Compliant.

Features

MC68332ACPV16 features: (1)32-Bit Architecture; (2)Virtual Memory Implementation; (3)Table Lookup and Interpolate Instruction; (4)Improved Exception Handling for Controller Applications; (5)High-Level Language Support; (6)Background Debugging Mode; (7)Fully Static Operation.
