Product Summary
The LXT980QC is a 5-port 10/100 Class II Repeater that is fully compliant with IEEE 802.3 standards. Four ports directly support either 100BASE-TX/10BASE-T copper media or 100BASE-FX fiber media via pseudo-ECL (PECL) interfaces. The fifth port, a 10 or 100 Mbps Media Independent Interface (MII), connects to Media Access Controllers (MACs) for bridge/switch applications. At 100 Mbps, the LXT980QC can also be configured to interface to another PHY device.
Parametrics
LXT980QC absolute maximum ratings: (1)Supply voltage VCC: -0.3 to 6 V; (2)Operating temperature Ambient TOPA: -15 +80℃; Case TOPC: +130℃; (3)Storage temperature TST: -65 to +150℃.
Features
LXT980QC features: (1)Four 10/100 ports with complete twisted-pair PHYs including integrated filters and 100BASE-FX PECL interfaces; (2)10/100 MII port connection to either MAC or PHY; (3)Independent segments for 10 and 100 Mbps operation; (4)Cascadable Inter-Repeater Backplanes (IRBs); (5)Hardware assist for RMON and the Repeater MIB; (6)High-speed Serial Management Interface (SMI); (7)Two address-tracking registers per port; (8)Source Address matching function; (9)Integrated LED drivers with user-selectable modes; (10)Available in 208-pin QFP package; (11)Case temperature range: 0-115℃.

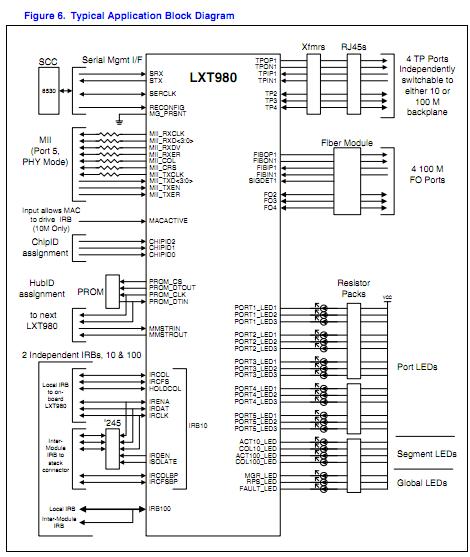

Diagrams
 |
