Product Summary

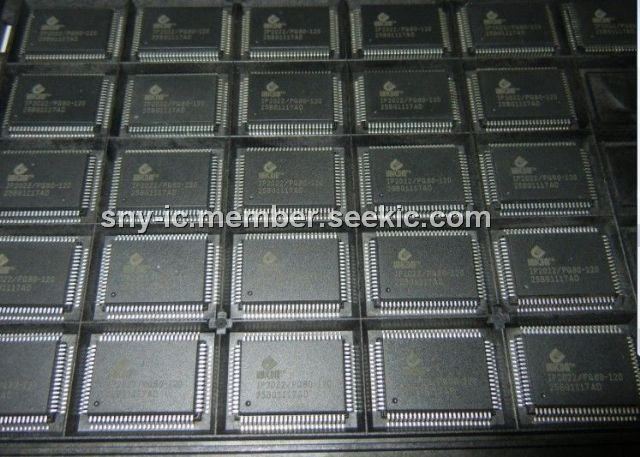

The Ubicom IP2022/PQ80-120 Internet Processor combines support for communication physical layer, Internet protocol stack, device-specific application, and devicespecific peripheral software modules in a single chip, and is reconfigurable over the Internet. The IP2022/PQ80-120 can be programmed, and reprogrammed, using pre-built software modules and configuration tools to create true single-chip solutions for a wide range of device-to-device and device-to-human communication applications.

Parametrics

IP2022/PQ80-120 absolute maximum ratings: (1)Ambient temperature under bias: -40 to 85℃; (2)Storage temperature: -65 to 150℃; (3)Voltage on DVdd with respect to Vss: -0.5 to 3.5V; (4)Voltage on XVdd with respect to Vss: -0.5 to 3.5V; (5)Voltage on AVdd with respect to Vss: -0.5 to 3.5V; (6)Voltage on GVdd with respect to Vss: -0.5 to 3.5V; (7)Voltage on IOVdd with respect to Vss: -0.5 to 4.5V; (8)Voltage on Port G inputs with respect to Vss: -0.5 to 3.5V; (9)Total power dissipation: 1W; (10)Maximum current out of all DVss pins: 400mA; (11)Maximum current into all DVdd pins: 400mA.

Features

IP2022/PQ80-120 features: (1)Designed to support single-chip networked solutions; (2)Advanced 120 MIPS RISC processor; (3)In-system reprogrammable for highest flexibility.

Diagrams

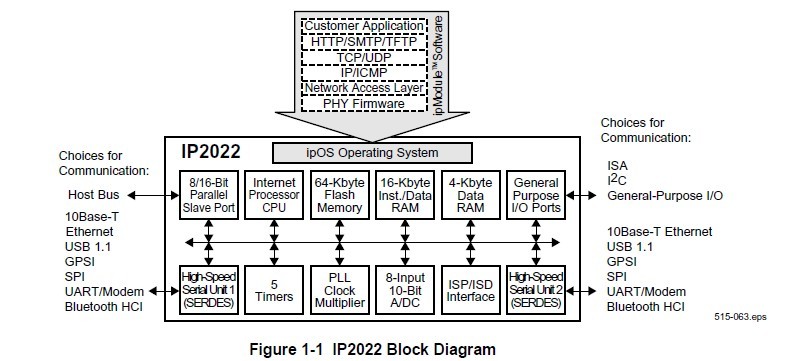

IP2022/PQ80-120 Block Diagram
