Product Summary

The DD600S16K4 is an european power semiconductor.

Parametrics

DD600S16K4 absolute maximum ratings: (1)repetitive peak reverse voltage tvj = 25℃ VRRM: 1600 V; (2)Dauergleichstrom DC forward current IF: 600 A; (3)Periodischer Spitzenstrom repetitive peak forward current tp = 1 ms IFRM: 1200 A; (4)Isolations-Prüfspannung insulation test voltage RMS, f=50 Hz, t=1 min. VISOL: 3 kV; (5)pro Zweig/per arm typ. 0,016 ℃/W; (6)junction temperature tvj max: 150 ℃; (7)operating temperature tc op: -40 to +125 ℃; (8)storage temperature tstg: -40 to +125 ℃.

Diagrams

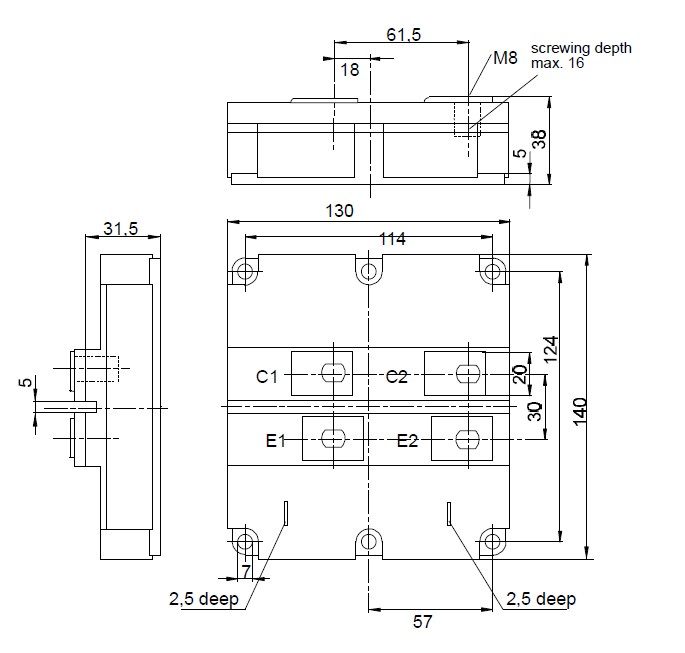

DD600S16K4 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DD600S16K4
DD600S16K4
Infineon Technologies
Rectifiers 1600V 600A F/DIODE
Data Sheet
0-2: $466.22
2-3: $419.59
3-5: $372.97
5-10: $349.66
