Product Summary

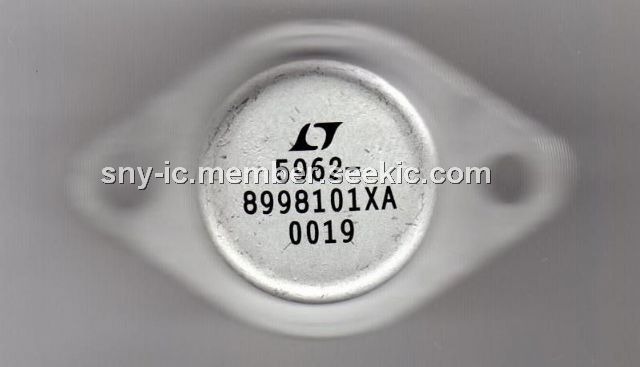

The 5962-8998101XA is a three terminal positive adjustable voltage regulator designed to provide 1.5A with higher efficiency than conventional voltage regulators. This device is designed to operate to 1 Volt input to output differential and the dropout voltage is specified as a function of load current. Supplied in easy-to-use hermetic TO-257, TO-3 and TO-39 packages, this device 5962-8998101XA is ideally suited for Military applications where small size and high reliability is required.

Parametrics

5962-8998101XA absolute maximum ratings: (1)Power Dissipation (Pd): Internally Limited; (2)Input - Output Voltage Differential: 35 V; (3)Operating Junction Temperature Range: - 55 to + 150℃; (4)Storage Temperature Range: - 65 to + 150℃; (5)Lead Temperature (Soldering 10 seconds): 300℃.

Features

5962-8998101XA features: (1)Similar To Industry Standard LT1086; (2)Approved To DESC Standardized Military Drawing Number 5962-89981; (3)Adjustable Output Voltage; (4)Built In Thermal Overload Protection; (5)Short Circuit Current Limiting; (6)Maximum Output Voltage Tolerance is Guaranteed To ±1%; (7)Guaranteed Dropout Voltage At Multiple Current Levels; (8)TO-257 Available in Isolated and Non-Isolated Packages.

Diagrams

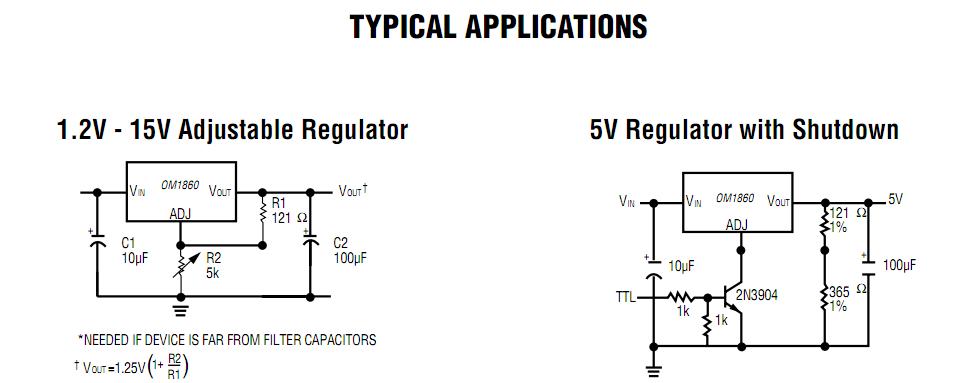

5962-8998101XA typical applicaitons
