Product Summary

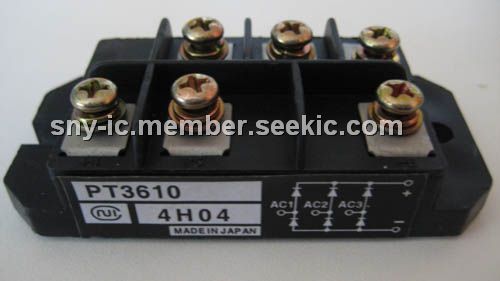

The PT3610 is a diode module. The application of the device is Rectified For General Use.
Parametrics
PT3610 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1000V; (2)Non Repetitive Peak Reverse Voltage, VRSM: 1100 V; (3)Average Rectified Output Current, IO(AV): 36 A; (4)Surge Forward Current, IFSM; 400 A; (5)I Squared t, I2t: 800 A2s; (6)Operating JunctionTemperature Range, Tjw: -40 to +150℃; (7)Storage Temperature Range, Tstg: -40 to +125℃; (8)Isoration Voltage, Vis: 2000 V.
Features
PT3610 features: (1)Isolated Base; (2)3 Phase Bridge Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PT3610 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PT360 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PT3610 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PT3642 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PT3660 |
Other |
|
Data Sheet |
Negotiable |
|
||||
