Product Summary

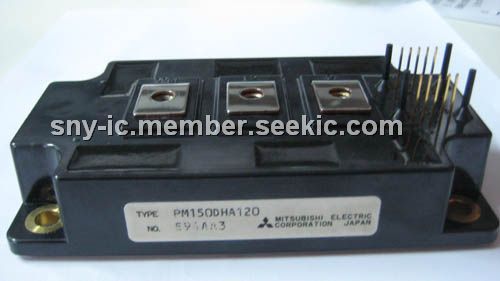

The PM150DHA120 is an intellimod-3 module. It is designed for applications requiring a high frequency output switching inverter. The module is isolated from the baseplate, consisting of complete drive, control and protection circuitry for the IGBT inverter. The applications of the PM150DHA120 are inverters, small UPS, motion/servo control and AC motor control.
Parametrics
PM150DHA120 absolute maximum ratings: (1)power device junction temperature, Tj: -20 to 150℃; (2)storage temperature, Tstg: -40 to 125℃; (3)case operating temperature, Tc: -20 to 100℃; (4)module weight: 630g; (5)supply voltage protected by OC and SC, VCC: 800V; (6)isolation voltage, Viso: 2500V.
Features
PM150DHA120 features: (1)complete output power circuit; (2)gate drive circuit; (3)protection logic.
