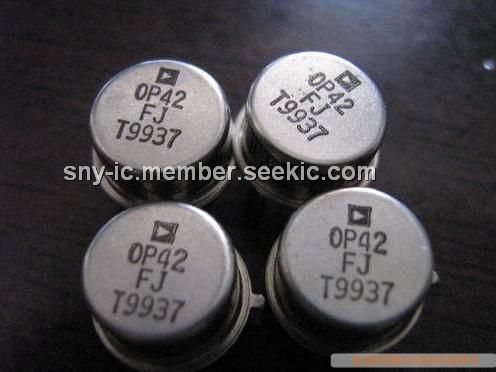

Product Summary

The OP42 is a JFET-input operational amplifier. The OP42 offers a symmetric 58V/μs slew rate and is internally compensated for unity-gain operation. The OP42 speed is achieved with a supply current of less than 6mA. Excellent radiation hardness characteristics make the OP42 ideal for military and aerospace applications.

Parametrics

OP42 absolute maximum ratings: (1)supply voltage: ±20V; (2)differential input voltage: ±20V; (3)input voltage: 40V; (4)output short-circuit duration: Indefined; (5)storage temperature range: -65 to 150℃; (6)lead temperature range: 300℃; (7)operating temperature range: -55 to 125℃; (8)junction temperature, Tj: -65 to 175℃.

Features

OP42 features: (1)Slew rate: 50V/μS Min; (2)Settling Time: 1μs Max; (3)Gain Bandwidth product: 10MHz; (4)Common Mode rejection: 88dB Min; (5)Open loop gain: 500V/mV Min; (6)Offset voltage: 750μV Max; (7)Bias current: 200pA Max.

Diagrams

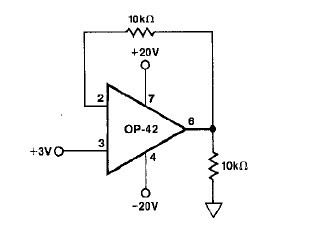

OP42 circuit diagram
