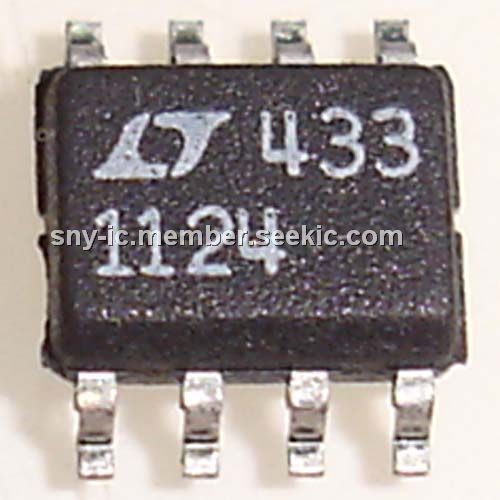

Product Summary
The LT1124CS8 is a quad high performance op amp that offers higher gain, slew rate and bandwidth than the industry standard OP-27 and competing OP-270/OP-470 op amps. In the design, processing and testing of the LT1124CS8, particular attention has been paid to the optimization of the entire distribution of several key parameters. The applications of the LT1124CS8 are Two and Three Op Amp Instrumentation Amplifiers, Low Noise Signal Processing, Active Filters, Microvolt Accuracy Threshold Detection, Strain Gauge Amplifiers, Direct Coupled Audio Gain Stages, Tape Head Preamplifiers, Infrared Detectors. Consequently, the specifications of even the lowest cost grades have been spectacularly improved compared to equivalent grades of competing amplifiers.
Parametrics
LT1124CS8 absolute maximum ratings: (1)Operating Temperature Range:-40℃ to 85℃; (2)Supply Voltage:±22V; (3)Input Voltages:±22V; (4)Output Short-Circuit Duration:Indefinite; (5)Differential Input Current:±25mA; (6)Lead Temperature (Soldering, 10 sec):300℃; (7)Storage Temperature Range:-65℃ to 150℃.
Features
LT1124CS8 features: (1)100% Tested Low Voltage Noise; (2)Slew Rate: 4.5V/μs Typ; (3)Gain Bandwidth Product: 12.5MHz Typ; (4)Offset Voltage, Prime Grade: 70μV Max, Low Grade: 100μV Max; (5)High Voltage Gain: 5 Million Min; (6)Supply Current Per Amplifier: 2.75mA Max; (7)Common Mode Rejection: 112dB Min; (8)Power Supply Rejection: 116dB Min; (9)Available in 8-Pin SO Package.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LT1124CS8 |
IC OP-AMP LOW NOISE DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||||
LT1124CS8#PBF |
IC OP-AMP LOW NOISE DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||||
LT1124CS8#TR |
IC OPAMP DUAL PREC HS LN 8SOIC |
Data Sheet |
|
|
||||||||||||
LT1124CS8#TRPBF |
IC OP-AMP LOW NOISE DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||||
LT1124CS8-1#PBF |
IC OPAMP DUAL PREC HS LN 8SOIC |
Data Sheet |
|
|
||||||||||||
LT1124CS8-1#TRPBF |
IC OPAMP DUAL PREC HS LN 8SOIC |
Data Sheet |
|
|
