Product Summary

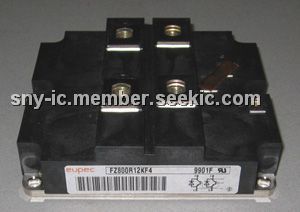

The FZ800R12KF4 is an IGBT module.

Parametrics

FZ800R12KF4 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200 V; (2)DC-collector current, IC: 800 A; (3)repetitive peak collctor current, ICRM: 1600 A; (4)total power dissipation, Ptot: 5400 W; (5)gate-emitter peak voltage, VGE: ± 20 V; (6)DC forward current, IF: 800 A; (7)repetitive peak forw. current, IFRM: 1600 A; (8)insulation test voltage, VISOL: 2,5 kV.

Features

FZ800R12KF4 features: (1)forward voltage, VF 2.2 to 2.7V; (2)peak reverse recovery current, IRM: 280A; (3)recovered charge, Qr: 35μAs.

Diagrams

FZ800R12KF4 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ800R12KF4
FZ800R12KF4
Infineon Technologies
IGBT Modules 1200V 800A SINGLE
Data Sheet
0-2: $358.98
2-3: $323.08
3-5: $287.19
5-10: $274.90
