Product Summary
The FZ600R12KE3 is an IGBT module. The typical applications of the device include high power converters, motor drives, UPS systems and wind turbines.
Parametrics
FZ600R12KE3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC: 900A; (3)repetitive peak collector current, ICRM: 1200A; (4)total power dissipation, Ptot: 2800W; (5)gate-emitter peak voltage, VGES: +/-20V.
Features
FZ600R12KE3 features: (1)low switching losses; (2)unbeatable robustness; (3)VCEsat with positive temperature coefficient; (4)low VCEsat.

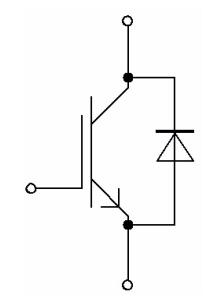

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FZ600R12KE3 |
Infineon Technologies |
IGBT Modules 1200V 600A SINGLE |
Data Sheet |
|
|
||||||||||
|
FZ600R12KE3B1 |
Infineon Technologies |
IGBT Modules N-CH 1.2KV 900A |
Data Sheet |
|
|
||||||||||
|
FZ600R12KE3S |
Infineon Technologies |
IGBT Transistors 1200V 600A SINGLE |
Data Sheet |
|
|
||||||||||
