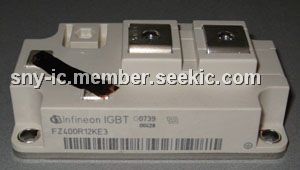

Product Summary

The FZ400R12KE3 is a 62mm C-series module with the fast IGBT2 for high-frequency switching.

Parametrics

FZ400R12KE3 maximum rated values: (1)collector-emitter voltage at Tvj=25℃, VCES: 1200v; (2)DC-collector current at Tc=25℃, Tvj=150℃, IC: 650A; (3)repetitive peak collector current at tp=1ms, ICRM: 800A; (4)total power dissipation at Tc=25℃, Tvj=150℃, Ptot: 2250W; (5)gate-emitter peak voltage, VGES: ±20 V.

Features

FZ400R12KE3 specifications: (1)Configuration: Single Dual Emitter; (2)Collector- Emitter Voltage VCEO Max: 1200 V; (3)Continuous Collector Current at 25 C: 650 A; (4)Maximum Operating Temperature: + 125℃; (5)Package / Case: 62MM; (6)Maximum Gate Emitter Voltage: +/- 20 V; (7)Minimum Operating Temperature: - 40℃; (8)Mounting Style: Screw; (9)Standard Pack Qty: 10.

Diagrams

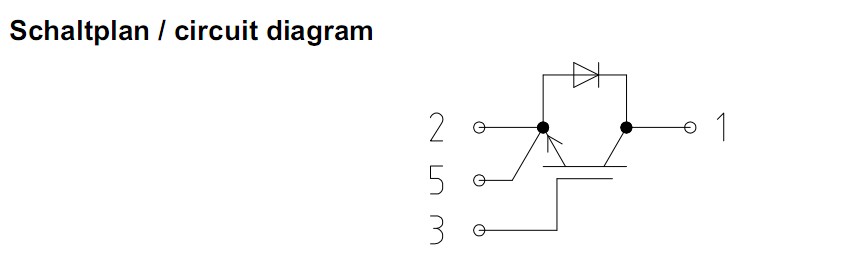

FZ400R12KE3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ400R12KE3
FZ400R12KE3

Infineon Technologies

IGBT Modules 1200V 400A SINGLE

Data Sheet

0-6: $85.58
6-10: $77.02
FZ400R12KE3B1
FZ400R12KE3B1

Infineon Technologies

IGBT Modules N-CH 1.2KV 650A

Data Sheet

0-6: $85.58
6-10: $77.02
FZ400R12KE3S
FZ400R12KE3S

Infineon Technologies

IGBT Transistors 1200V 400A SINGLE

Data Sheet

0-1: $378.59
1-10: $364.57
