Product Summary

The CM200DU-12F is an IGBT module. The device is sutiable for General purpose inverters & Servo controls, etc.

Parametrics

CM200DU-12F absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 590W; (4)Junction temperature, Tj: -40 to 150℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation voltage, Viso: 2500Vrms.

Features

CM200DU-12F features: (1)IC: 200A; (2)VCE: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

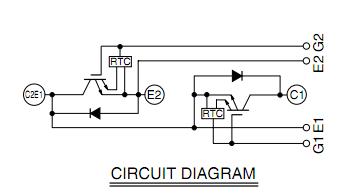

CM200DU-12F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

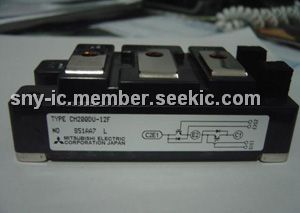

CM200DU-12F
CM200DU-12F

IGBT MOD DUAL 600V 200A F SER
Data Sheet
0-1: $68.20
1-10: $63.94
10-100: $57.54
100-250: $55.41
250-500: $54.56
500-1000: $52.00
1000-2500: $51.15
