CM100TU-12F

Powerex IGBTMOD Module, 2500 Volts, 350 Watts, 100 Amperes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $50.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $50.00~100.00

PartNumber:: CM100TU-12F

Brand:: Powerex Power Semiconductors - Powerex | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chris's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-01

From Other Seller

Part Number:CM100TU-12F
US $50.00 - 100.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

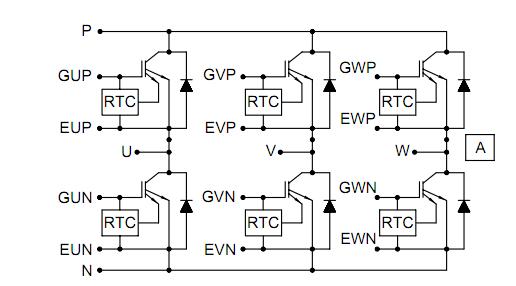

The CM100TU-12F is a Powerex IGBTMOD Module designed for use in switching applications. The CM100TU-12F consists of six IGBT Transistors in a three phase bridge configuration, with each transistor having a reverse- connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applicaitons of the CM100TU-12F are AC Motor Control, UPS and Battery Powered Supplies.

Parametrics

CM100TU-12F aboslute maximum raitngs: (1)Junction Temperature Tj: -40 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 100 Amperes; (6)Peak Collector Current (Tj ≤ 150℃) ICM: 200* Amperes; (7)Emitter Current IE: 100 Amperes; (8)Peak Emitter Current IEM: 200 Amperes; (9)Maximum Collector Dissipation (Tj < 150℃) Pc: 350 Watts; (10)Mounting Torque, M4 Main Terminal: – 15 in-lb; (11)Mounting Torque, M5 Mounting: – 31 in-lb; (12)Weight: 570 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Volts.

Features

CM100TU-12F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.
