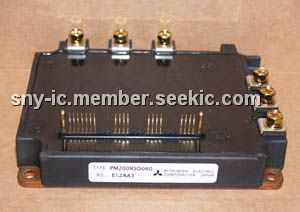

PM200RSD060

intelligent power module, flat-base type, insulated package, 600v, 200A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $150.00~200.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $150.00~200.00

PartNumber:: PM200RSD060

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chris's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-01

From Other Seller

Part Number:PM200RSD060
US $150.00 - 200.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PM200RSD060 is an intelligent power module for general purpose inverter, servo drives and other motor controls.

Parametrics

PM200RSD060 maximum ratings: (1)VCES, Collector-Emitter Voltage at VD = 15V, VCIN = 15V: 600v; (2)±IC, Collector Current at TC = 25℃: 200A; (3)±ICP, Collector Current (Peak) at TC = 25℃: 400A; (4)PC, Collector Dissipation at TC = 25℃: 595w; (5)Tj, Junction Temperature: -20 to 150℃.
