Product Summary
The PM150RSA060 is a Mitsubishi Intelligent Power Module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM150RSA060 are Inverters, UPS, Motion/Servo Control and Power Supplies.
Parametrics
PM150RSA060 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Case Operating Temperature TC: -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 1.47~1.96 Nm; (5)Mounting Torque, M5 Main Terminal Screw: 1.47~1.96 N m; (6)Module Weight (Typical): 550 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part, Tj= 125℃) VCC(prot.): 400 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
PM150RSA060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit, Over Current, Over Temperature, Under Voltage.

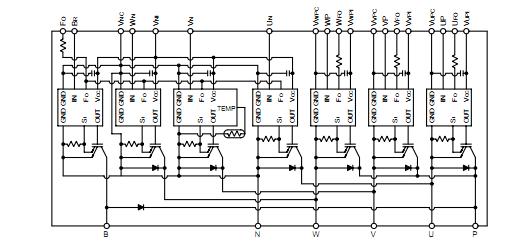

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM150RSA060 |
|
MOD IPM 7PAC 600V 150A |
Data Sheet |
Negotiable |
|
||||||
