Product Summary
The LM2576 is a step-down voltage regulator, provides all the active functions for a step-down(buck) voltage regulator. This device features an out-put voltage which is asjustable from 1.23V to 37V and is capable of driving a 3A load with excellent line and load regulation. The applications of the LM2576 include simple high-efficiency step-down (buck) regulator, efficient pre-regulator for linear regulators, on-card switching regulators, positive to negative converter (inverting, buck-boost), isolated flyback converter using minimum number of external components, negative boost converter.
Parametrics
LM2576 absolute maximum ratings: (1)Maximum supply voltage: 45V; (2)ON/OFF Pin input voltage: －0.3V≤V≤+40V; (3)Output voltage to ground(steady state): －1V; (4)Power Disspation: internally limited; (5)Storage temperature range: －65℃ to +150℃.
Features
LM2576 features: (1)Adjustable output, reference ±2% max over line and load conditions; (2)Guaranteed 3A output current; (3)Wide input voltage range, 4V to 40V; (4)Wide output voltage range, 1.23V to 37V; (5)Requries only 4 external components; (6)52kHz fixed frequency inrernal oscailltor; (7)Low power standby mode, IQ typically ＜200μA; (8)Efficiency typically over 80%; (9)Uses readily available standard inductors; (10)Thermal shutdown and current limit protection; (11)100% electrical thermal limit burn-in.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

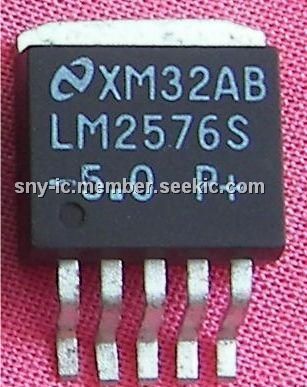

 LM2576-5.0BT |
|
IC REG BUCK 5V 3A TO220-5 |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
LM2576-5.0BU |
|

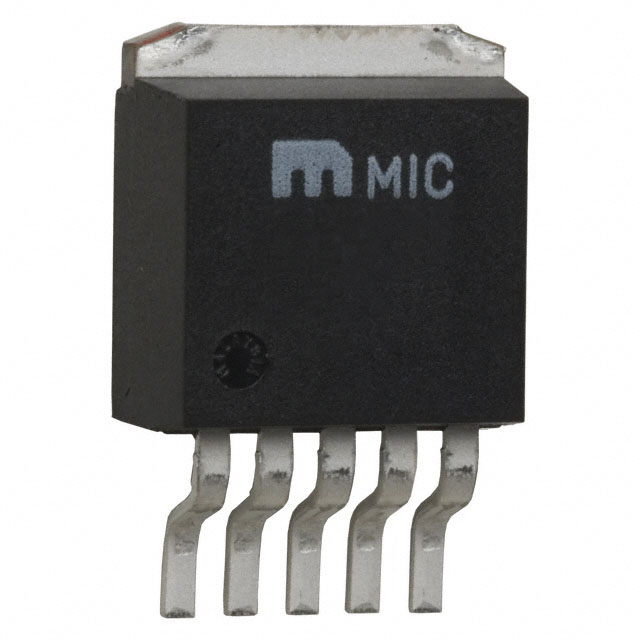

IC REG BUCK 5V 3A TO263-5 |
Data Sheet |
Negotiable |
|
||||||||||||||
 |
LM2576D2T-005G |
ON Semiconductor |
Switching Converters, Regulators & Controllers 5V 3A Buck PWM |
Data Sheet |
|
|
||||||||||||||
|
LM2576D2T-ADJG |
ON Semiconductor |
Switching Converters, Regulators & Controllers 3A 1.23-37V ADJ Buck PWM |
Data Sheet |
|
|
||||||||||||||
|
LM2576D2T-15G |
ON Semiconductor |
Switching Converters, Regulators & Controllers 15V 3A Buck PWM |
Data Sheet |
|
|
||||||||||||||
|
LM2576HVS-12/NOPB |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers 3A STEP-DOWN VLTG REG |
Data Sheet |
|
|
||||||||||||||
|
LM2576D2T-ADJR4G |
ON Semiconductor |
Switching Converters, Regulators & Controllers 3A 1.23-37V ADJ Buck PWM |
Data Sheet |
|
|
||||||||||||||
 |
LM2576HVS-12 |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||||
