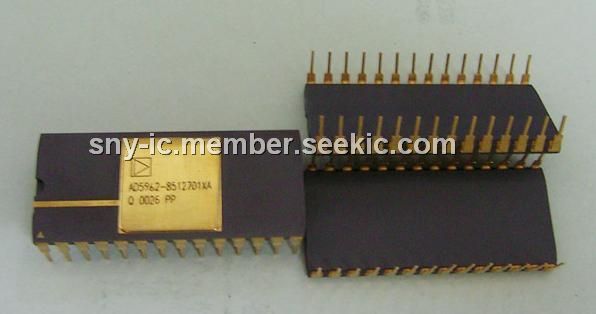

Product Summary

The AD5962-8512701XA is a monolithic temperature setpoint controller that has been optimized for use at elevated temperatures such as those found in oven control applications. The AD5962-8512701XA cold junction compensates and amplifies a type J or K thermocouple input to derive an internal signal proportional to tem- perature. The internal signal is then compared with an externally applied setpoint voltage to yield a low impedance switched output voltage. Dead-Band or switching hysteresis can be programmed using a single external resistor. Alternately, the AD5962-8512701XA can be configured to provide a voltage output directly from a type J or K thermocouple signal. It can also be used as a stand-alone voltage output temperature sensor.

Parametrics

AD5962-8512701XA absolute maximum ratings: (1)+VS to –VS: 36 V; (2)Common-Mode Input Voltage: (–VS – 0.15) +VS; (3)Differential Input Voltage: –VS +VS; (4)Alarm Voltages, +ALM: –VS (–VS +36); –ALM: –VS +VS; (5)Operating Temperature Range: –55 +125℃; (6)Output Short Circuit to Common: Indefinite.

Features

AD5962-8512701XA features: (1)Low Cost; (2)Operates with Type J Thermocouples; (3)Built-In Ice Point Compensation; (4)Temperature Proportional Operation – 10 mV/℃; (5)Temperature Setpoint Operation – ON/OFF; (6)Programmable Switching Hysteresis; (7)High Impedance Differential Input.

Diagrams

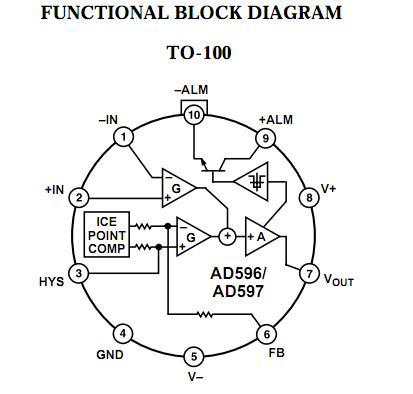

AD5962-8512701XA block diagram
