Product Summary

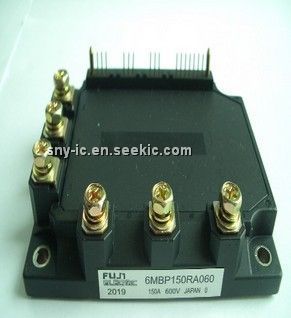

The 6MBP150RA060 is a R series IGBT-IPM.

Parametrics

(1)DC bus voltage, VDC: 0 to 450V; (2)DC bus voltage (surge), VDC(surge): 0 to 500V; (3)DC bus voltage (short operating), VSC: 200 to 400V; (4)Collector-Emitter voltage, VCES: 0 to 600V; (5)INV, Collector current DC, IC: 150A; 1ms, ICP: 300A; Duty=58.8%, -IC: 150A; Collector power dissipation, One transistor, Pc: 595W; (6)Junction temperature, Tj: 150°C; (7)Input voltage of power supply for Pre-Driver, VCC: 0 to 20V; (8)Input signal voltage, Vin: 0 to VZ V; (9)Input signal current, Iin: 1mA; (10)Alarm signal voltage, VALM: 0 to VCC V; (11)Alarm signal current, IALM: 15 ; (12)Storage temperature, Tstg: -40 to 125°C; (13)Operating case temperature, Top: -20 to 100°C; (14)Isolating voltage (Case-Terminal), Viso: AC2.5 kV; (15)Screw torque Mounting (M5): 3.5N.m; Terminal (M5): 3.5N.m.

Features

(1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

Diagrams
