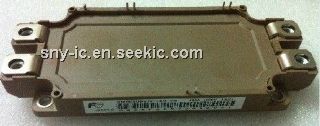

Product Summary

The applications of the 2MBI600VN-120 include Inverter for Motor Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply, Industrial machines, such as Welding machines.



Parametrics

absolute maximum ratings： (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, Ic, Continuous Tc=80°C: 600A; Ic pulse, 1ms; (4)Tc=80°C: 1200A; -Ic: 600A; -Ic pulse, 1ms: 1200A; (5)Collector power dissipation, Pc, 1 device: 3750W; (6)Junction temperature, Tj: 175°C; (7)Operating junction temperature (under switching conditions), Tjop: 150℃; (8)Case temperature, TC: 125; (9)Storage temperature, Tstg: -40 to +125; (10)Isolation voltage between terminal and copper base (*1), Viso; (11)AC: 1min.: 2500VAC; (12)Screw torque, Mounting: 3.5Nm; Terminals: 4.5Nm.

Features

features：(1)High speed switching; (2)Voltage drive; (3)Low Inductance module structure.

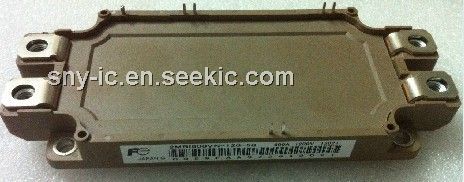

Diagrams
