The 2MBI100NC-120 is an IGBT module, which is designed for High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI100NC-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Continuous: 100 A; (4)Max. Power Dissipation: 780 W; (5)Operating Temperature: +150 ℃; (6)Storage Temperature: -40 to +125 ℃; (7)Isolation Voltage: 2500 V.
Features
2MBI100NC-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4 to 5 Times Rated Current).

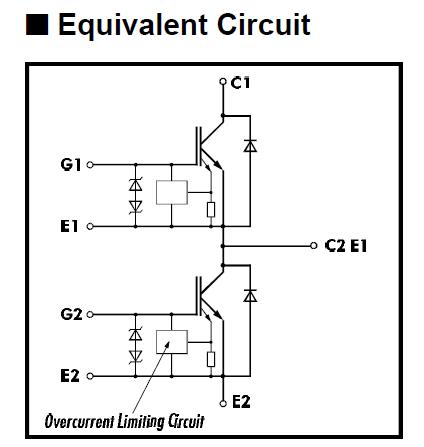

Diagrams
